WIDOS 4001/4002/4002 S CNC

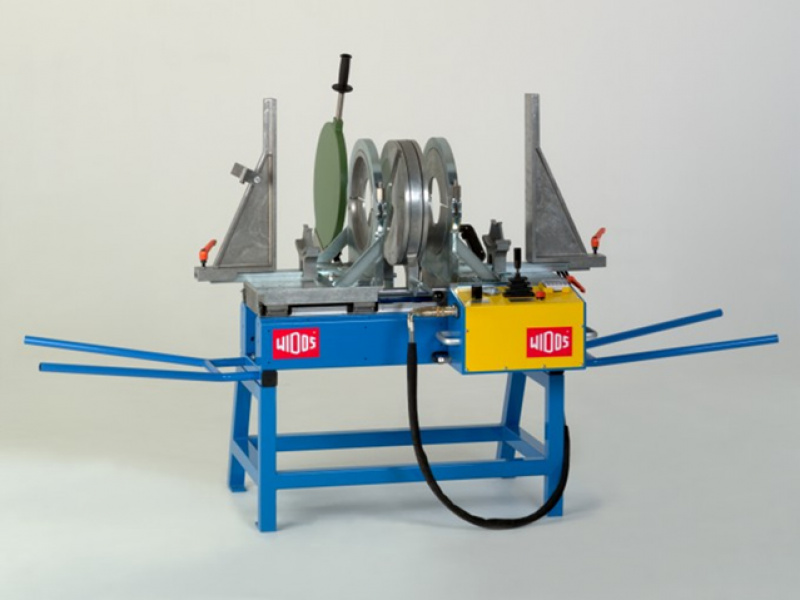

Workshop devices for butt welding of pipes and fittings from PE, PP and PVDF for diameters from DA 90 to DA 315 mm, (available extension up to DA 450 mm) with hydraulic shift of clamping tool. Welding unit is mounted on the base frame with handles for machine transport. Alternatively can be supplied with SPA protocol unit or CNC control unit. Clamping tools can swivel about 15° for welding segmented bends or T-pieces.
| Machine type |
WIDOS 4001 |
WIDOS 4001/450 |
WIDOS 4002 * |
WIDOS 4002/450 |

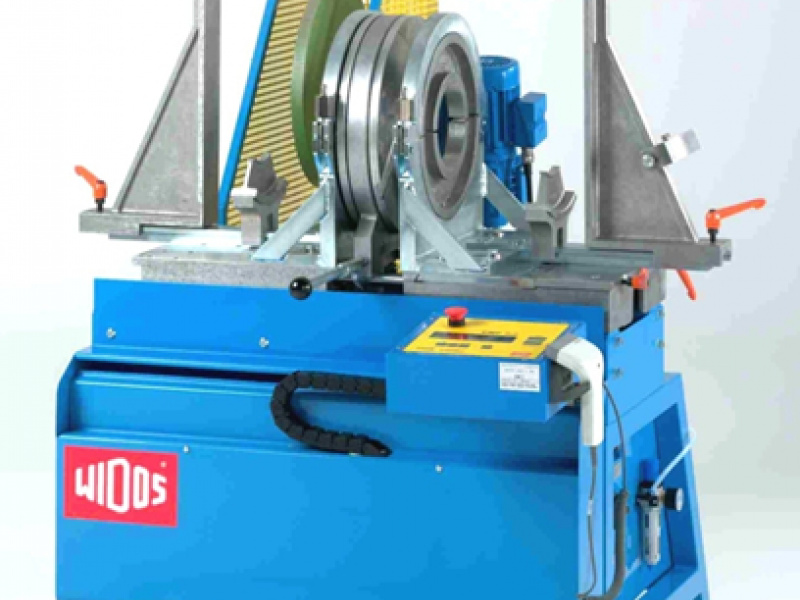

WIDOS 4002 S CNC * |
WIDOS 4002 SPA * |
| Range in mm | 90 - 315 | 90 - 450 | 90 - 315 | 90 - 450 | 90 - 315 | 90 - 315 |
| Basic machine | ||||||
| Hydraulic power unit | ||||||
| Electrical planer | ||||||
| Heating element | ||||||
| CNC or SPA unit | ||||||
| Base frame | ||||||
| Reducer inserts | ||||||
| Reducer inserts DA 90 | ||||||
| Reducer inserts DA 110 | ||||||
| Reducer inserts DA 125 | ||||||
| Reducer inserts DA 140 | ||||||
| Reducer inserts DA 160 | ||||||
| Reducer inserts DA 180 | ||||||
| Reducer inserts DA 200 | ||||||
| Reducer inserts DA 225 | ||||||
| Reducer inserts DA 250 | ||||||
| Reducer inserts DA 280 | ||||||
| Reducer inserts DA 315 | basic clamping tools | basic clamping tools | basic clamping tools | basic clamping tools | ||
| Reducer inserts DA 355 | ||||||
| Reducer inserts DA 400 | ||||||
| Reducer inserts DA 450 | basic clamping tools | basic clamping tools | ||||
| Adapter for diameters DA 90 - 315 | ||||||
| Accessories | ||||||
| Flange adapter | ||||||
| Left adjustable table | ||||||
| Second working hydraulic valve | ||||||
| Barcode reader | optional | |||||
| USB connector | ||||||
| SD memory card | ||||||
| Welding pass | ||||||
| Pipe data card | ||||||
| Operating software | ||||||
* an extension component for fabrication of welded 45°, 60° a 90° T-pieces (for dimension up to DA 250) is available

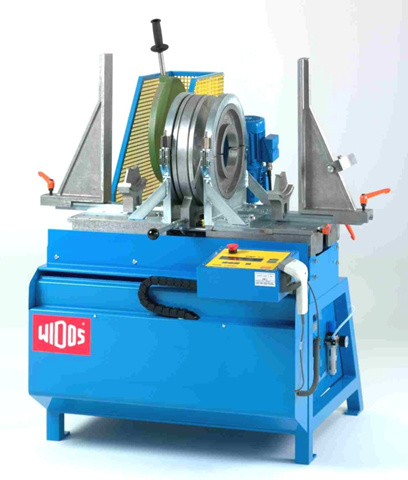

Plastic welding machine for the heating element butt welding of PE-, PP- and PVDF-pipes and fittings from OD 90 up to OD 315 mm. With electro-hydraulic adjusting device for the control and application of the welding pressure, planer with electrical chain drive in a closed aluminium housing, external chip removal, holding bracket for the heating element, adjustable timer, two transport handles, basic clamping device (without diameter depending reduction inserts) swivelling on each side up to 15° for the welding of segmented bends and fittings.
The right-hand clamping tool is axially movable for adjustment of diameter tolerances. Hydraulic unit, planer, heating element and clamping tools can be easily removed for transporting the machine even into difficult accessible rooms.
