WIDOS 7000 WM/7000 WS CNC
Workshop devices for butt welding of pipes and fittings from PE, PP and PVDF for diameters from DA 200 to DA 630 mm, with hydraulic shift or drive unit clamping tool. Welding unit is mounted on the massive base frame, with two movable welding tables on it . Alternatively can be supplied with SPA protocol unit, or CNC control unit. Clamping tools can swivel about 15°, or 22,5° for segmented bends or T-pieces welding.
| Machine type |
WIDOS 7000 WM* |
WIDOS 7000 WM/800 |
WIDOS 7000 WM SPA* |
WIDOS 7000 WM/800 SPA |
WIDOS 7000 WS CNC* |
WIDOS 7000 WS/800 CNC |
| Range in mm | 200 - 630 | 200 - 800 | 200 - 630 | 200 - 800 | 200 - 630 | 200 - 800 |
| Basic machine | ||||||
| Hydraulic power unit | ||||||
| Electrical planer | ||||||
| Heating element | ||||||
| CNC or SPA unit | ||||||
| Base frame | ||||||
| Hydraulic clamping tools | ||||||
| Reducer inserts | ||||||
| Reducer inserts DA 200 | ||||||
| Reducer inserts DA 225 | ||||||
| Reducer inserts DA 250 | ||||||
| Reducer inserts DA 280 | ||||||
| Reducer inserts DA 315 | ||||||
| Reducer inserts DA 355 | ||||||
| Reducer inserts DA 400 | ||||||
| Reducer inserts DA 450 | ||||||
| Reducer inserts DA 500 | ||||||
| Reducer inserts DA 560 | ||||||
| Reducer inserts DA 630 | basic clamping tools | basic clamping tools | basic clamping tools | |||
| Reducer inserts DA 710 | ||||||
| Reducer inserts DA 800 | basic clamping tools | basic clamping tools | basic clamping tools | |||
| Adapter for diameters DA 200 - 280 | ||||||
| Adapter for diameters DA 200 - 450 | ||||||
| Adapter for diameters DA 500 - 560 | ||||||
| Accessories | ||||||
| Flange adapter | optional | optional | ||||
| Left adjustable table | optional | optional | ||||
| Second working hydraulic valve | optional | optional | optional | optional | optional | optional |
| Barcode reader | optional | optional | ||||
| USB connector | ||||||
| SD memory card | ||||||
| Welding pass | ||||||
| Pipe data card | ||||||
| Operating software | ||||||
* an extension component for fabrication of welded 45°, 60° a 90° T-pieces (for dimension up to DA 630) is available

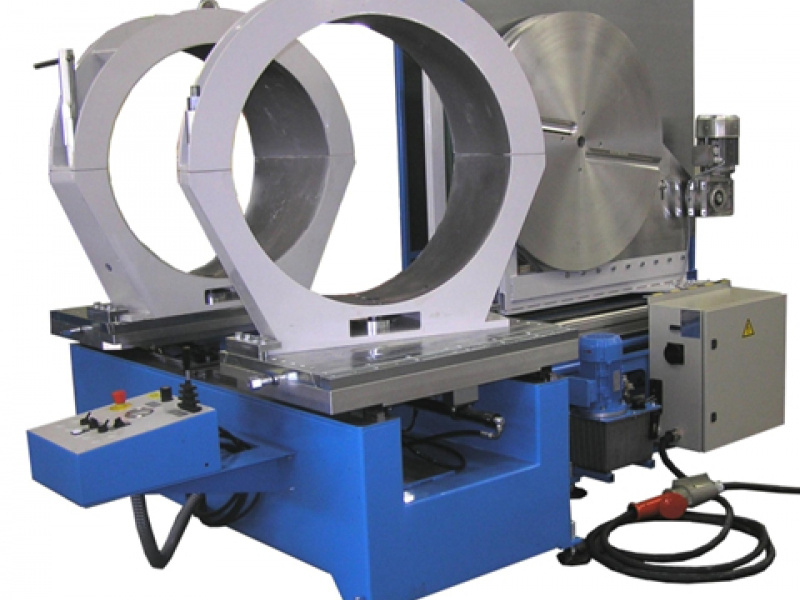

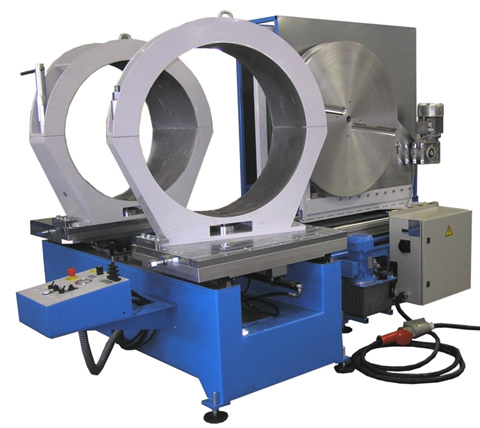

Manual plastic welding machine for heating element butt welding of PE and PP tubes from OD 200 up to OD 630 and for the rational fabrication of fittings, bends and T- and cross-pieces of the highest quality in the workshop. The welding machine is mounted on an extremely solid and torsion-resistant basic frame and has two movable machine tables running on precise guiding units highly capable of bearing. The table drive allowing exactly controllable forces at smooth running is constructed in an ideal way with respect to the demands of the plastics processing. The floating fixation of the tables enables a very solid suspension of heating element and planer. Both are pneumatically retracted between the basic clamping tools by means of high quality linear guidings and meet highest demands on quality and service life.

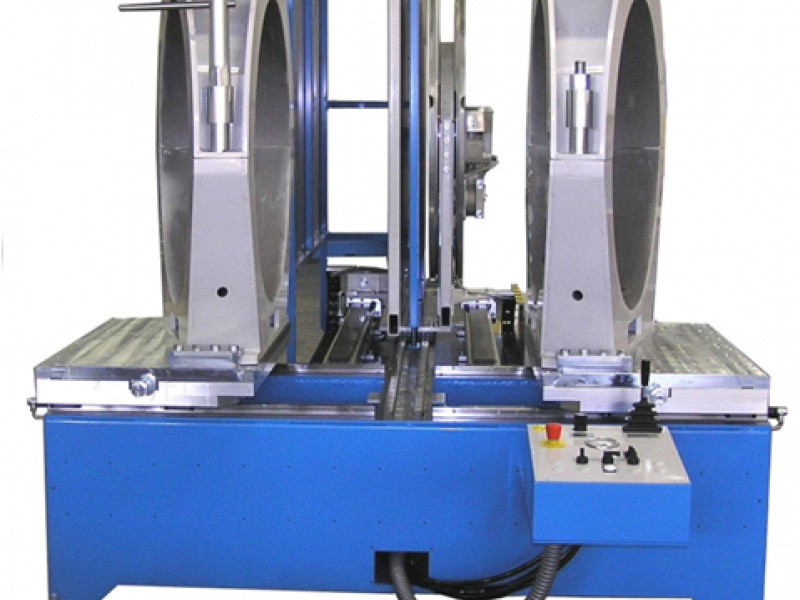

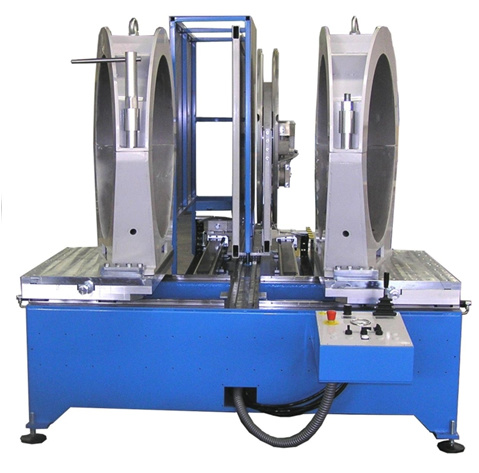

The clamping devices which have been optimized in handling and stability are mounted swivellingly onto the tables for the fabrication of fittings and may be shifted horizontally for an easy mismatch compensation. Vertical compensating motions are available upon request. Besides the solid versions of 15° resp. 22,5° which are principally used for the fabrication of segmented bends, small steel versions are available for the clamping of even the smallest straight stubs of the fittings like e.g. flanges. The welding pieces are clamped manually via spindles in the standard version and may be optionally supplemented by hydraulic systems. The anti-stick coated heating element has an electronical temperature control and meets highest requirements on service life and distribution of the temperature. The electric planer with chain drive in a closed housing with high torque performance has been optimized in its high cutting performance while running smoothly.
