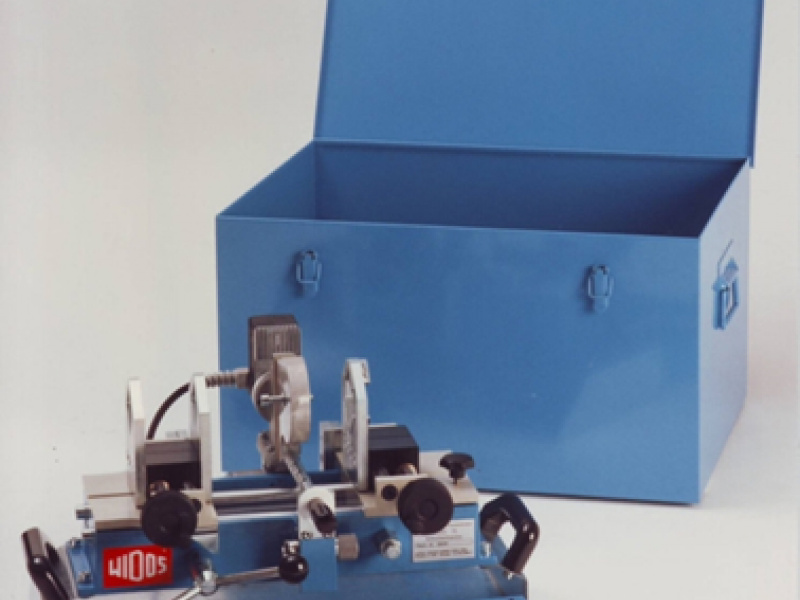

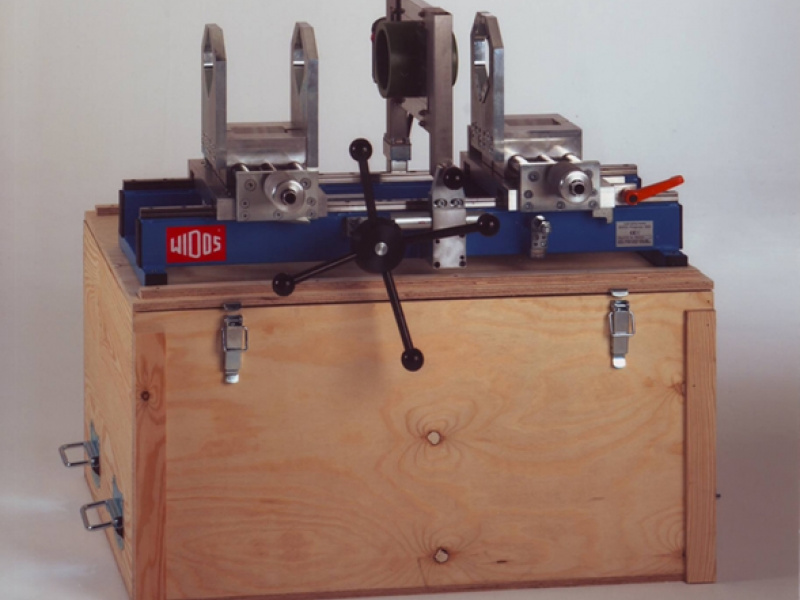

WIDOS 7511/3511/3600
The worksop devices for poly-fusion welding of pipes and fittings from PE, PP, PB a PVDF, for diameters from DA 20 to DA 160 mm, with mechanical shift of clamping tools. Heating element is attached directly to the clamping tools. Transport box allows simple transport of welding device and also can be used as a pedestal for welding unit.
| Machine type | WIDOS 7511 | WIDOS 3511 | WIDOS 3600 |
| Range in mm | 20 - 75 | 20 - 125 | 63 - 160 |
| Basic machine | |||
| Mechanical shift of clamping tools | |||
| Heating element | |||
| Power supply | 230 V / 630 W | 230 V / 1100 W | 230 V / 1100 W |
| Reducer inserts | |||
| Reducer inserts DA 20 | |||
| Reducer inserts DA 25 | |||
| Reducer inserts DA 32 | |||
| Reducer inserts DA 40 | |||
| Reducer inserts DA 50 | |||
| Reducer inserts DA 56 | optional | optional | |
| Reducer inserts DA 63 | |||
| Reducer inserts DA 75 | |||
| Reducer inserts DA 90 | |||
| Reducer inserts DA 110 | |||
| Reducer inserts DA 125 | |||
| Reducer inserts DA 140 | |||
| Reducer inserts DA 160 | |||
| Accessories | |||
| Steel case | |||
| Transport case | |||
| Fastening clamp for table | |||
"The WI-PRECISION® machines are mounted on a solid frame. The motion of the slides runs against each other and is controlled by a rack-and-pinion drive. It is possible to clamp all outer diameters by a prismatic clamping being continuously adjustable; there is a double prism on the pipe side that may be replaced easily and quickly."
The fitting side features a simple clamping device; limitation of the insertion depth is secured by a turning knob depending on the diameter (version selectable in mm or inch). Both slides may be aligned axially in order to adjust the fusion pieces; positioning is supported by an insertion stop. The swinging socket heating element is built on the machine including holder, features on/off-switch, electronic temperature control in accordance with DVS 2208. For the storage of machine and accessories, a carrying case is available.
