WIDOS CNC 3.0 - controlled welding machines

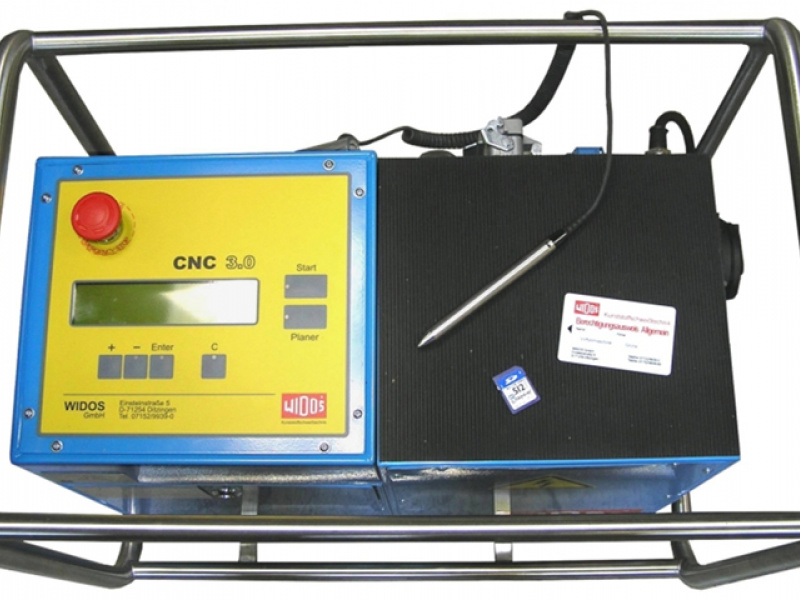

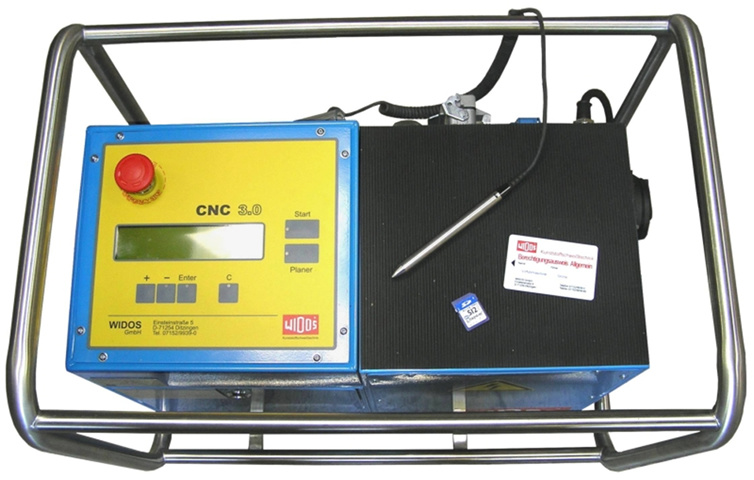

The WIDOS CNC 3.0/3.5 is the third generation of our CNC control units. The unit which has proven to be appropriate for the every day application has been improved in its easy user guidance and software as well as supplemented with a SD card and a barcode reading pencil. The extended memory allows the recording of more than a 30.000 weldings. The new larger display emphasizes its suitability for the application on building sites with the new three-chamber safety housing.

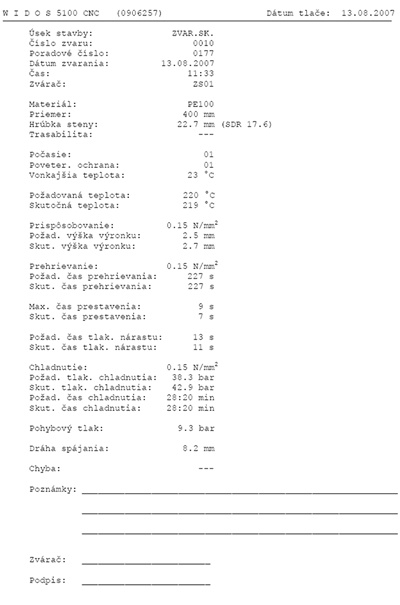

A program modification has been included for data retracing according to ISO/TC 138/SC 4/WG 2 and is freely selectable. The WIDOS 3.0 control unit can be used with our building site machines WIDOS 4400 up to WIDOS 12000. Moreover the unit can be combined with our workshop machines and special machines. The emergency storage battery provides the computer with electricity during the cooling down process after a disconnection from the mains voltage.

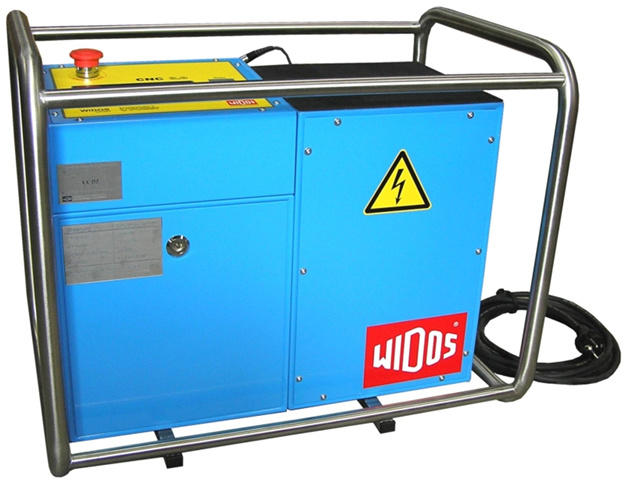

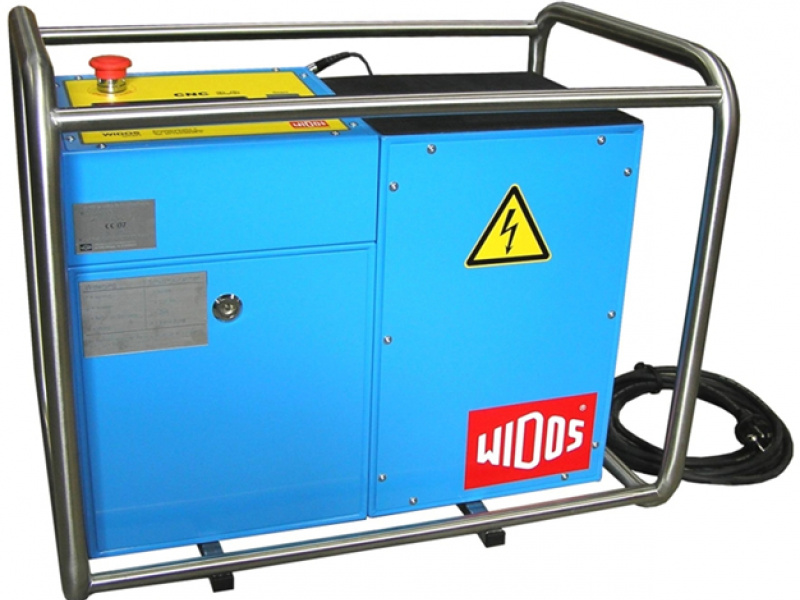

The control unit is available in a simplified form as CNC 3.5, i.e. barcode reading pen, emergency current supply and SD drive are omitted.
