CTF SAURON BARBARA/ONDINE/E.MANUEL/JULIE

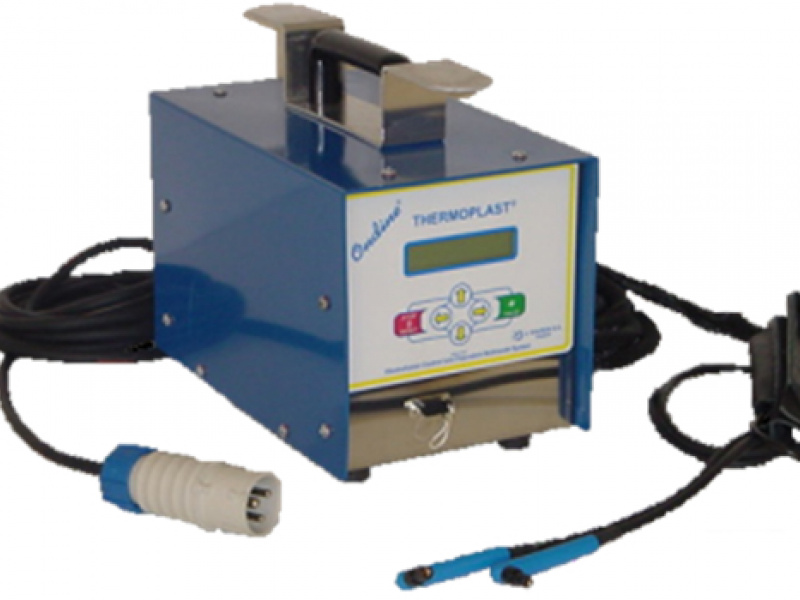

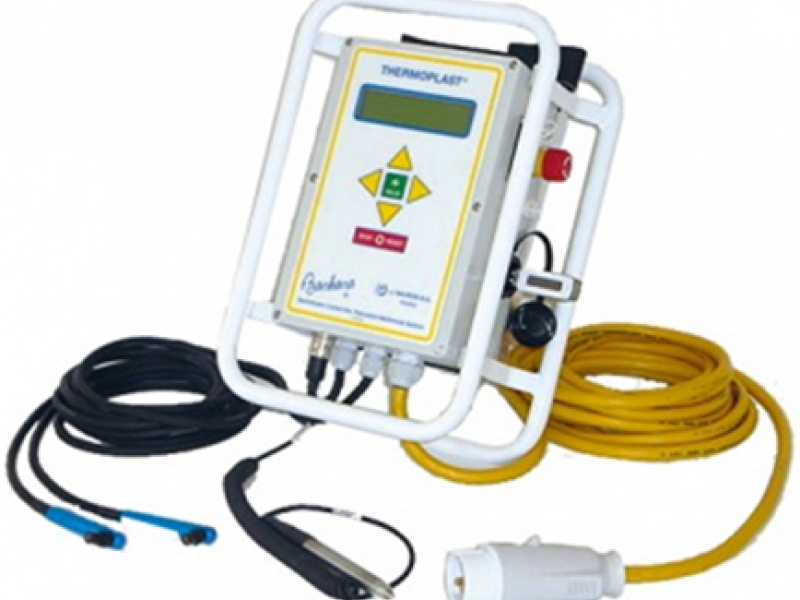

CTF Sauron - Barbara / Ondine / E.Manuell / Julie is a type line of machines for electro fusion welding - from an elementary one, without protocol option, up to fully equiped devices with protocol report option, PE and PP socket using and without maximum welding diameter limitation (except types Ondine Compact S160 and Julie 123 Battery). Separated transformer by VLV types allows maximal weight and dimension reduction.
| Machine type | BARBARA VLV | BARBARA Compact | ONDINE VLV | ONDINE Compact | ONDINE Compact S160 | E.MANUEL | JULIE 123 Battery |
| Technical specification | DA 20 - unlimit. | DA 20 - unlimit. | DA 20 - unlimit. | DA 20 - unlimit. | DA 20 - 160 | DA 20 - unlimit. | DA 20 - 110 |
| Separated transformer | |||||||
| Barcode data input | |||||||
| Manual data input | |||||||
| Memory capacity (number of protocols) | 970 | 970 | 100 | 100 | 970 | 100 | 100 |
| Extended protocol records ISO 12176 | |||||||
| Additional informations | |||||||
| Output USB connector | optional | optional | |||||
| Display | 4 x 20 characters | 4 x 20 characters | 4 x 20 characters | 4 x 20 characters | 4 x 20 characters | 4 x 20 characters | 4 x 20 characters |
| Controled energy consumption | |||||||
| Welding current dynamic control | |||||||
| Srvice reports | |||||||
| Protection degree | IP 54 | IP 54 | IP 54 | IP 54 | IP 54 | IP 54 | IP 54 |
| Max. current load (A) | 80 | 80 | 80 | 80 | 80 | 80 | |
| Input voltage (V) | 48 | 230 | 48 | 230 | 230 | 230 | 48 (battery) |
| Output voltage (V) | 8 - 48 | 8 - 48 | 8 - 48 | 8 - 48 | 8 - 48 | 8 - 48 | 8 - 42 |
| Dimensions (mm) | 350x230x160 | 330x190x280 | 350x230x160 | 320x200x290 | 340x300x150 | 280x180x280 | 350x230x160 |
| Weight without accessories (kg) | 3,5 | 19,0 | 3,5 | 19,0 | 10,0 | 17,0 | 2,5 |
| Transformer dimensions (mm) | 700x500x500 | 700x500x500 | |||||
| Transformer weight 230/48 V(kg) | 15,0 | 15,0 | 20,0 (battery) | ||||
| Accessories | |||||||
| Barcode reader | |||||||
| Plug-in cable | |||||||
| Welding cable | |||||||
| Plug adapter 4,0 mm | |||||||
| Plug adapter 4,7 mm | optional | optional | optional | optional | optional | optional | optional |
| Flat plug adapter | optional | optional | optional | optional | optional | optional | optional |
| Alluminium case | optional | optional | optional | optional | optional | optional | optional |
| Data processing software | optional | optional | optional | optional | optional | optional | optional |
